Description
Article no.: mimled600

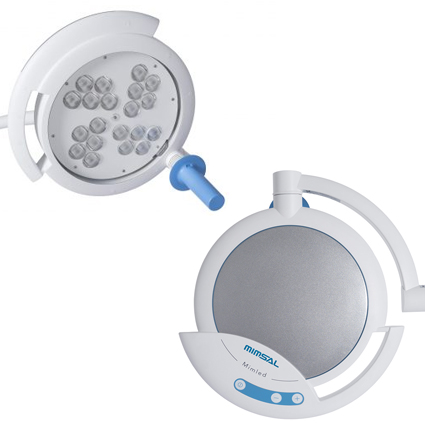

Compact LED Surgery lamp.
MIMLED 600 offers 60.000 lux at 1 meter.
HOMOGENEOUS ILLUMINATION
Each LED module illuminates the surgical field independently. The result is a shadow-free and homogenous light field over a large depth of illumination even when operating directly under the luminaire.
LIGHT CONTROL WITH ENDO MODE
While most compact medical luminaires cannot be operated at reduced brightness, the MIMLED offers a wide range of brightness options down to only 10.000 lux.
COLOUR RENDITION / TEMPERATURE
The lights provide a high colour rendering index (CRI) of over 95 for optimal tissue contrast. Especially red color tones are reproduced with hightest fidelity (R9 > 90) and enhance the visualization of the surgical field. The MIMLED have a fixed colour temperature of 4.000 K.
DESIGN & HANDLING
The compact and rounded shape of the luminaire reduces drag in OR with laminar flow systems and keeps the operating field sterile. Separate light controls for sterile and non-sterile users ensures intuitive and safe handling. Turn on the light and control the brightness by simply turning the blue sterile handle.
| MIMLED 600 | |
|---|---|
| Number of LEDs | 15 LEDs |
| Illumination at 1 m | 60.000 lux |
| Lamp lifetime | >50.000 hours |
| Colour temperature | 4.000 ºK |
| Colour rendering | >95% Ra / >90% R9 |
| Light field diameter at 1 m | 210mm |
| Light Field Diameter D50/10 | 140 mm / 210 mm |
| Consumption | 24W |
| IP | 42 |
| Power Supply | 100/240V - 50/60Hz |
| Dimmable | Yes |
